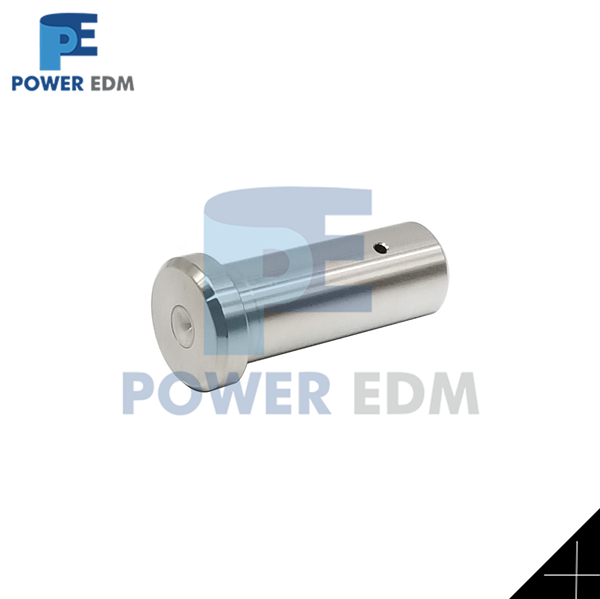

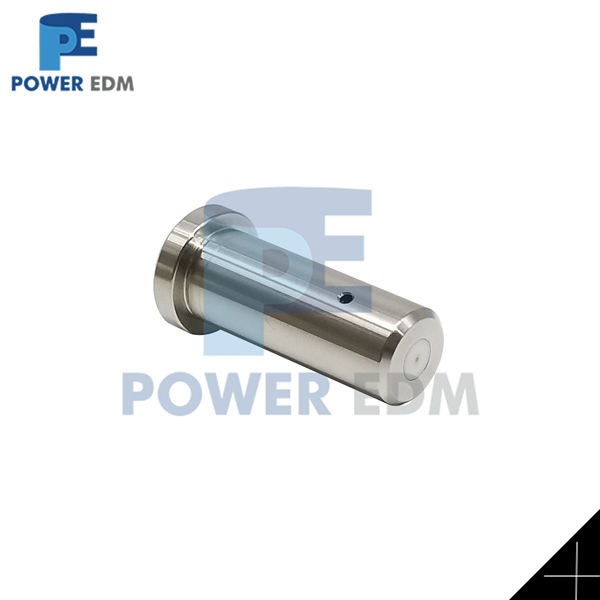

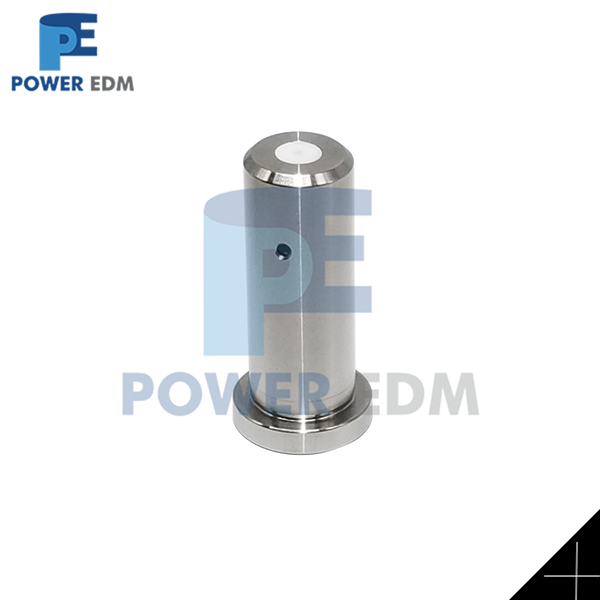

Agie Charmilles Pipe guide |
|
|
D type ceramic insert |
|
|
Available ID=0.10mm-3.10mm |
|
|
Body 1 OD=16.0mm |
|
|
Body 2 OD=12.0mm |
|
|
Tatal Length L=35mm |
|
|
|
|
Model NO. |
ID (mm) |
L(mm） |
|
Z140D-010-C |
Φ0.10mm |
L=35mm |
|
Z140D-015-C |
Φ0.15mm |
L=35mm |
|
Z140D-020-C |
Φ0.20mm |
L=35mm |
|
Z140D-025-C |
Φ0.25mm |
L=35mm |
|
Z140D-030-C |
Φ0.30mm |
L=35mm |
|
Z140D-040-C |
Φ0.40mm |
L=35mm |
|
Z140D-050-C |
Φ0.50mm |
L=35mm |
|
Z140D-060-C |
Φ0.60mm |
L=35mm |
|
Z140D-070-C |
Φ0.70mm |
L=35mm |
|
Z140D-080-C |
Φ0.80mm |
L=35mm |
|
Z140D-090-C |
Φ0.90mm |
L=35mm |
|
Z140D-100-C |
Φ1.00mm |
L=35mm |
|
Z140D-110-C |
Φ1.10mm |
L=35mm |
|
Z140D-120-C |
Φ1.20mm |
L=35mm |
|
Z140D-130-C |
Φ1.30mm |
L=35mm |
|
Z140D-140-C |
Φ1.40mm |
L=35mm |
|
Z140D-150-C |
Φ1.50mm |
L=35mm |
|
Z140D-160-C |
Φ1.60mm |
L=35mm |
|
Z140D-170-C |
Φ1.70mm |
L=35mm |
|
Z140D-180-C |
Φ1.80mm |
L=35mm |
|
Z140D-190-C |
Φ1.90mm |
L=35mm |
|
Z140D-200-C |
Φ2.00mm |
L=35mm |
|
Z140D-210-C |
Φ2.10mm |
L=35mm |
|
Z140D-220-C |
Φ2.20mm |
L=35mm |
|
Z140D-230-C |
Φ2.30mm |
L=35mm |
|
Z140D-240-C |
Φ2.40mm |
L=35mm |
|
Z140D-250-C |
Φ2.50mm |
L=35mm |
|
Z140D-260-C |
Φ2.60mm |
L=35mm |
|
Z140D-270-C |
Φ2.70mm |
L=35mm |
|
Z140D-280-C |
Φ2.80mm |
L=35mm |
|
Z140D-290-C |
Φ2.90mm |
L=35mm |
|
Z140D-300-C |
Φ3.00mm |
L=35mm |
|
Z140D-310-C |
Φ3.10mm |
L=35mm |
