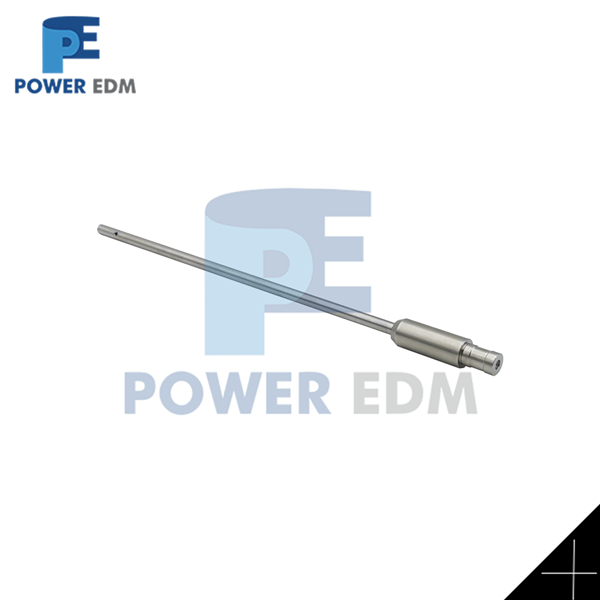

Ceramic Pipe Guide |
|
|

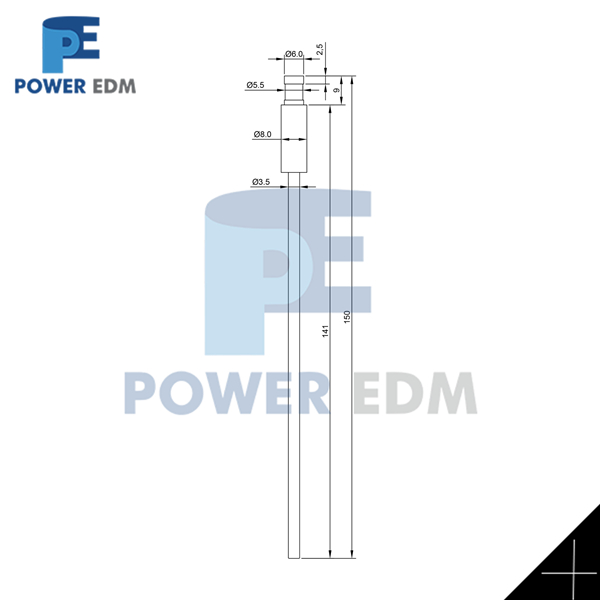

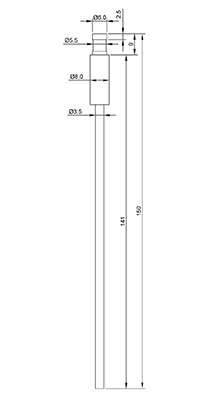

B Type Extension 120mm 3.5mm |
|
|
Available ID=0.1mm-3.30mm |
|
|
Body 1 OD=8.0mm |
|
|
Body 2 OD=3.5mm |
|
|
Shaft OD=5.5mm |
|
|
Extension Length L=120mm |
|
|
Total L=150mm |
|
|
|
|
|
|
|
|
|
|
Model NO. |
ID (mm) |
Extension L |
|
Z140B-D3.5-EX120-010 |
Φ0.10mm |
120mm |
|
Z140B-D3.5-EX120-020 |
Φ0.20mm |
120mm |
|
Z140B-D3.5-EX120-030 |
Φ0.30mm |
120mm |
|
Z140B-D3.5-EX120-040 |
Φ0.40mm |
120mm |
|
Z140B-D3.5-EX120-050 |
Φ0.50mm |
120mm |
|
Z140B-D3.5-EX120-060 |
Φ0.60mm |
120mm |
|
Z140B-D3.5-EX120-070 |
Φ0.70mm |
120mm |
|
Z140B-D3.5-EX120-080 |
Φ0.80mm |
120mm |
|
Z140B-D3.5-EX120-090 |
Φ0.90mm |
120mm |
|
Z140B-D3.5-EX120-100 |
Φ1.00mm |
120mm |
|
Z140B-D3.5-EX120-110 |
Φ1.10mm |
120mm |
|
Z140B-D3.5-EX120-120 |
Φ1.20mm |
120mm |
|
Z140B-D3.5-EX120-130 |
Φ1.30mm |
120mm |
|
Z140B-D3.5-EX120-140 |
Φ1.40mm |
120mm |
|
Z140B-D3.5-EX120-150 |
Φ1.50mm |
120mm |
|
Z140B-D3.5-EX120-160 |
Φ1.60mm |
120mm |
|
Z140B-D3.5-EX120-170 |
Φ1.70mm |
120mm |
|
Z140B-D3.5-EX120-180 |
Φ1.80mm |
120mm |
|
Z140B-D3.5-EX120-190 |
Φ1.90mm |
120mm |
|
Z140B-D3.5-EX120-200 |
Φ2.00mm |
120mm |
|
Z140B-D3.5-EX120-210 |
Φ2.10mm |
120mm |
|
Z140B-D3.5-EX120-220 |
Φ2.20mm |
120mm |
|
Z140B-D3.5-EX120-230 |
Φ2.30mm |
120mm |
|
Z140B-D3.5-EX120-240 |
Φ2.40mm |
120mm |
|
Z140B-D3.5-EX120-250 |
Φ2.50mm |
120mm |
|
Z140B-D3.5-EX120-260 |
Φ2.60mm |
120mm |
|
Z140B-D3.5-EX120-270 |
Φ2.70mm |
120mm |
|
Z140B-D3.5-EX120-280 |
Φ2.80mm |
120mm |
|
Z140B-D3.5-EX120-290 |
Φ2.90mm |
120mm |
|
Z140B-D3.5-EX120-300 |
Φ3.00mm |
120mm |
|
Z140B-D3.5-EX120-310 |
Φ3.10mm |
120mm |
|
Z140B-D3.5-EX120-320 |
Φ3.20mm |
120mm |
|
Z140B-D3.5-EX120-330 |
Φ3.30mm |
120mm |
