Sodick TS Guide

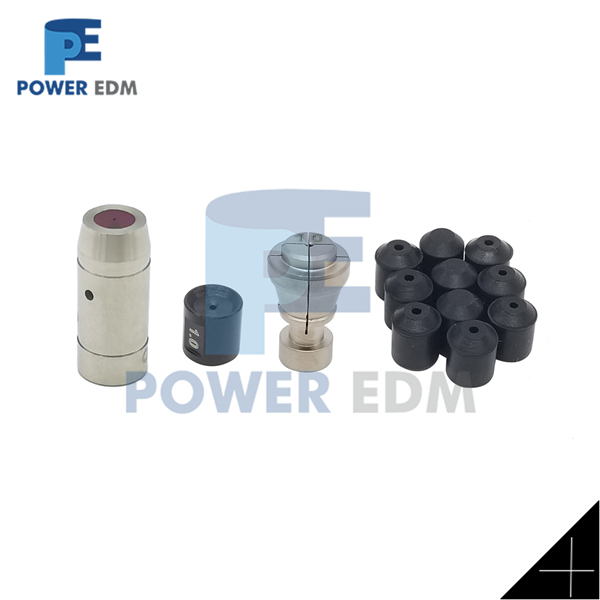

  • TS-SET-NEW-R New Type (Stainless case Ruby insert) SET Ts guide for Sodick Small Hole Drilling Mechine
TS-SET-NEW-R New Type (Stainless case Ruby insert) SET Ts guide for Sodick Small Hole Drilling Mechine

TS-SET-NEW-R New Type (Stainless case Ruby insert) SET Ts guide for Sodick Small Hole Drilling Mechine

  • Ref No.: TS-SET-NEW-R-010
  • OEM No.: -
  • Size: OD=10mm,ID=0.10mm,L=23mm
  • Brand: Sodick
  • Product description: TS-SET-NEW-R New Type (Stainless case Ruby insert) SET Ts guide for Sodick Small Hole Drilling Mechine，EDM Consumables，Power EDM
  • INQUIRY   EMAIL
Product Description:

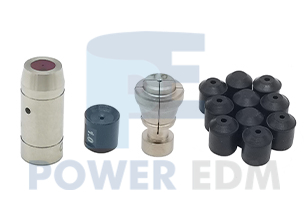

Sodick TS Guide SET


New Type (Stainless case Ruby insert) SET

Available ID=0.10mm-3.00mm

Model NO.

ID (mm)

OD (mm）

L(mm）

TS-SET-NEW-R-010

Φ0.10mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-015

Φ0.15mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-020

Φ0.20mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-025

Φ0.25mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-030

Φ0.30mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-040

Φ0.40mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-050

Φ0.50mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-060

Φ0.60mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-070

Φ0.70mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-080

Φ0.80mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-090

Φ0.90mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-100

Φ1.00mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-110

Φ1.10mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-120

Φ1.20mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-130

Φ1.30mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-140

Φ1.40mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-150

Φ1.50mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-160

Φ1.60mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-170

Φ1.70mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-180

Φ1.80mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-190

Φ1.90mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-200

Φ2.00mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-210

Φ2.10mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-220

Φ2.20mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-230

Φ2.30mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-240

Φ2.40mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-250

Φ2.50mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-260

Φ2.60mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-270

Φ2.70mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-280

Φ2.80mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-290

Φ2.90mm

Φ10.0mm

L=23mm

TS-SET-NEW-R-300

Φ3.00mm

Φ10.0mm

L=23mm
