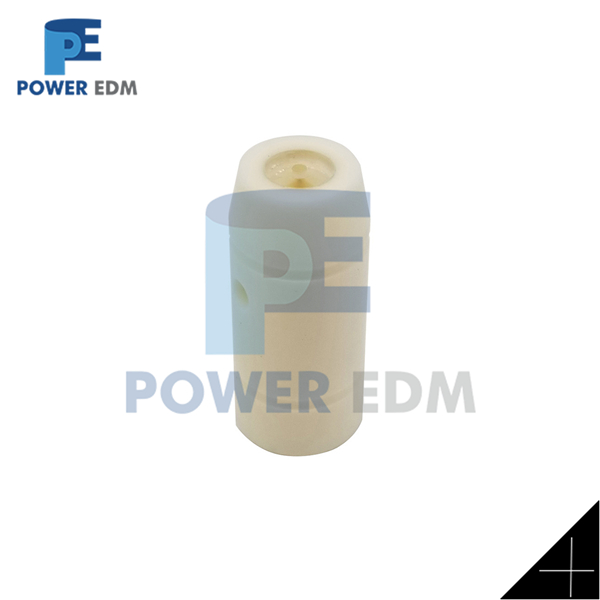

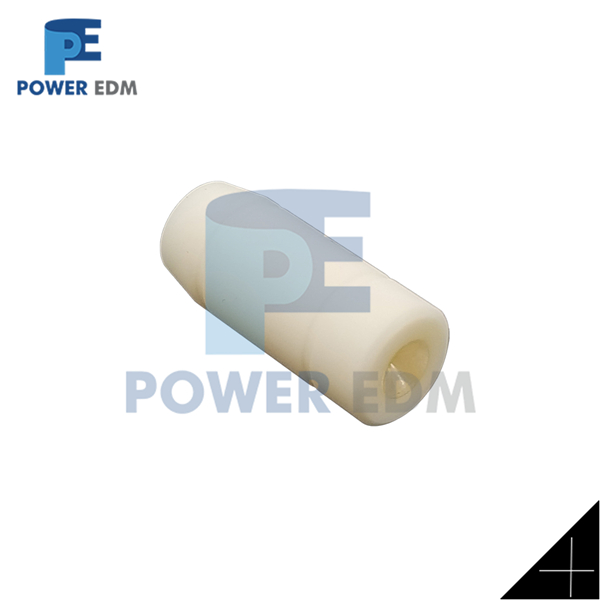

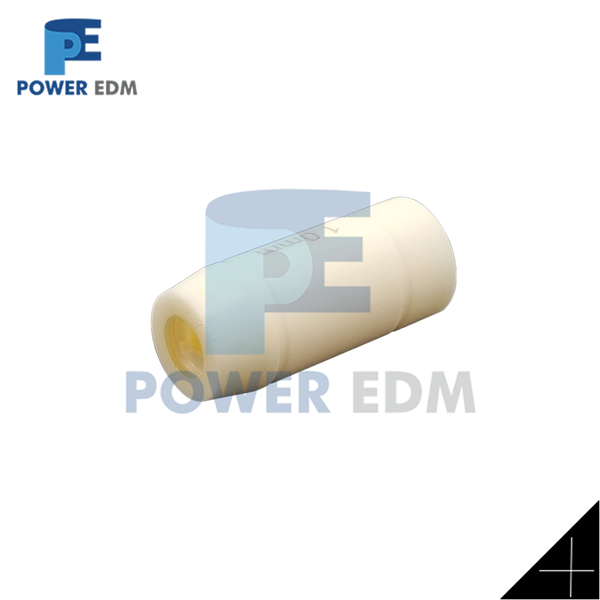

Sodick TS Guide |
|
|
New Type (Ceramic case Sapphire insert) |
|
|
Available ID=0.1mm-4.0mm |
|
|
Body OD=10.0mm |
|
|
Length L=23mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
Model NO. |
ID (mm) |
OEM NO. |
|
TSG-NEW-CS-010 |
Φ0.10mm |
- |
|
TSG-NEW-CS-015 |
Φ0.15mm |
- |
|
TSG-NEW-CS-020 |
Φ0.20mm |
- |
|
TSG-NEW-CS-025 |
Φ0.25mm |
- |
|
TSG-NEW-CS-030 |
Φ0.30mm |
3561666 |
|
TSG-NEW-CS-0305 |
Φ0.305mm |
3561638 |
|
TSG-NEW-CS-040 |
Φ0.40mm |
3561667 |
|
TSG-NEW-CS-050 |
Φ0.50mm |
3561668 |
|
TSG-NEW-CS-0505 |
Φ0.505mm |
3561640 |
|
TSG-NEW-CS-060 |
Φ0.60mm |
3561669 |
|
TSG-NEW-CS-070 |
Φ0.70mm |
3561670 |
|
TSG-NEW-CS-080 |
Φ0.80mm |
3561671 |
|
TSG-NEW-CS-090 |
Φ0.90mm |
3561672 |
|
TSG-NEW-CS-100 |
Φ1.00mm |
3561673 |
|
TSG-NEW-CS-110 |
Φ1.10mm |
3561674 |
|
TSG-NEW-CS-120 |
Φ1.20mm |
3561675 |
|
TSG-NEW-CS-130 |
Φ1.30mm |
3561676 |
|
TSG-NEW-CS-140 |
Φ1.40mm |
3561677 |
|
TSG-NEW-CS-150 |
Φ1.50mm |
3561678 |
|
TSG-NEW-CS-160 |
Φ1.60mm |
3561679 |
|
TSG-NEW-CS-170 |
Φ1.70mm |
3561680 |
|
TSG-NEW-CS-180 |
Φ1.80mm |
3561681 |
|
TSG-NEW-CS-190 |
Φ1.90mm |
3561682 |
|
TSG-NEW-CS-200 |
Φ2.00mm |
3561683 |
|
TSG-NEW-CS-210 |
Φ2.10mm |
3561684 |
|
TSG-NEW-CS-220 |
Φ2.20mm |
3561685 |
|
TSG-NEW-CS-230 |
Φ2.30mm |
3561686 |
|
TSG-NEW-CS-240 |
Φ2.40mm |
3561687 |
|
TSG-NEW-CS-250 |
Φ2.50mm |
3561688 |
|
TSG-NEW-CS-260 |
Φ2.60mm |
3561689 |
|
TSG-NEW-CS-270 |
Φ2.70mm |
3561690 |
|
TSG-NEW-CS-280 |
Φ2.80mm |
3561691 |
|
TSG-NEW-CS-290 |
Φ2.90mm |
3561692 |
|
TSG-NEW-CS-300 |
Φ3.00mm |
3561693 |
|
TSG-NEW-CS-302 |
Φ3.02mm |
3561693 |
|
TSG-NEW-CS-310 |
Φ3.10mm |
- |
|
TSG-NEW-CS-400 |
Φ4.00mm |
- |
