Agie Charmilles Drill Guide

  • SET-Z140D-C Type D Pipe Guide Ceramic insert SET for Agie Charmilles Small Hole Drilling Mechine

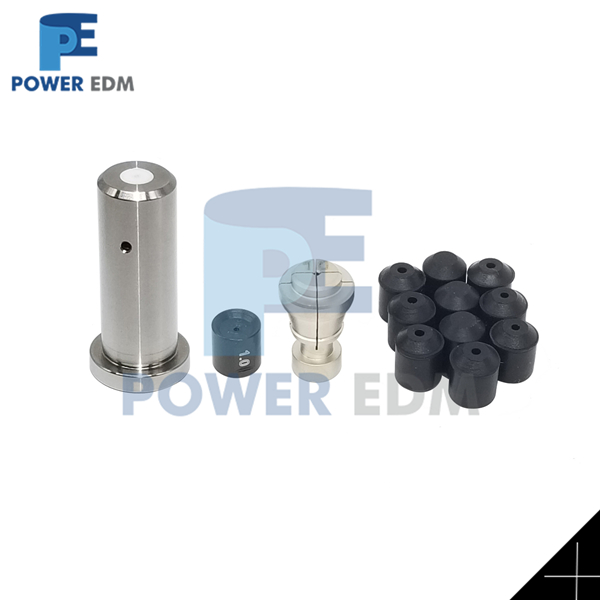

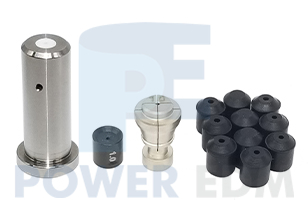

SET-Z140D-C Type D Pipe Guide Ceramic insert SET for Agie Charmilles Small Hole Drilling Mechine

SET-Z140D-C Type D Pipe Guide Ceramic insert SET for Agie Charmilles Small Hole Drilling Mechine

  • Ref No.: SET-Z140D-010-C
  • OEM No.: -
  • Size: OD=16/12mm,ID=0.10mm,L=35mm
  • Brand: Agie Charmilles
  • Product description: SET-Z140D-C Type D Pipe Guide Ceramic insert SET for Agie Charmilles Small Hole Drilling Mechine，EDM Consumables，Power EDM
  • INQUIRY   EMAIL
Product Description:

Agie Charmilles Pipe guide

D type Ceramic insert SET

Available ID=0.10mm-3.10mm

Body 1 OD=16.0mm

Body 2 OD=12.0mm

Tatal Length L=35mm


Model NO.

ID (mm)

L(mm）

SET-Z140D-010-C

Φ0.10mm

L=35mm

SET-Z140D-015-C

Φ0.15mm

L=35mm

SET-Z140D-020-C

Φ0.20mm

L=35mm

SET-Z140D-025-C

Φ0.25mm

L=35mm

SET-Z140D-030-C

Φ0.30mm

L=35mm

SET-Z140D-040-C

Φ0.40mm

L=35mm

SET-Z140D-050-C

Φ0.50mm

L=35mm

SET-Z140D-060-C

Φ0.60mm

L=35mm

SET-Z140D-070-C

Φ0.70mm

L=35mm

SET-Z140D-080-C

Φ0.80mm

L=35mm

SET-Z140D-090-C

Φ0.90mm

L=35mm

SET-Z140D-100-C

Φ1.00mm

L=35mm

SET-Z140D-110-C

Φ1.10mm

L=35mm

SET-Z140D-120-C

Φ1.20mm

L=35mm

SET-Z140D-130-C

Φ1.30mm

L=35mm

SET-Z140D-140-C

Φ1.40mm

L=35mm

SET-Z140D-150-C

Φ1.50mm

L=35mm

SET-Z140D-160-C

Φ1.60mm

L=35mm

SET-Z140D-170-C

Φ1.70mm

L=35mm

SET-Z140D-180-C

Φ1.80mm

L=35mm

SET-Z140D-190-C

Φ1.90mm

L=35mm

SET-Z140D-200-C

Φ2.00mm

L=35mm

SET-Z140D-210-C

Φ2.10mm

L=35mm

SET-Z140D-220-C

Φ2.20mm

L=35mm

SET-Z140D-230-C

Φ2.30mm

L=35mm

SET-Z140D-240-C

Φ2.40mm

L=35mm

SET-Z140D-250-C

Φ2.50mm

L=35mm

SET-Z140D-260-C

Φ2.60mm

L=35mm

SET-Z140D-270-C

Φ2.70mm

L=35mm

SET-Z140D-280-C

Φ2.80mm

L=35mm

SET-Z140D-290-C

Φ2.90mm

L=35mm

SET-Z140D-300-C

Φ3.00mm

L=35mm

SET-Z140D-310-C

Φ3.10mm

L=35mm
