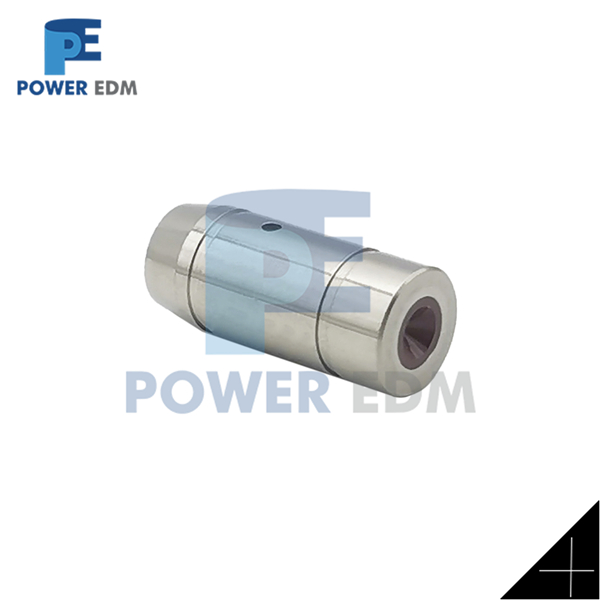

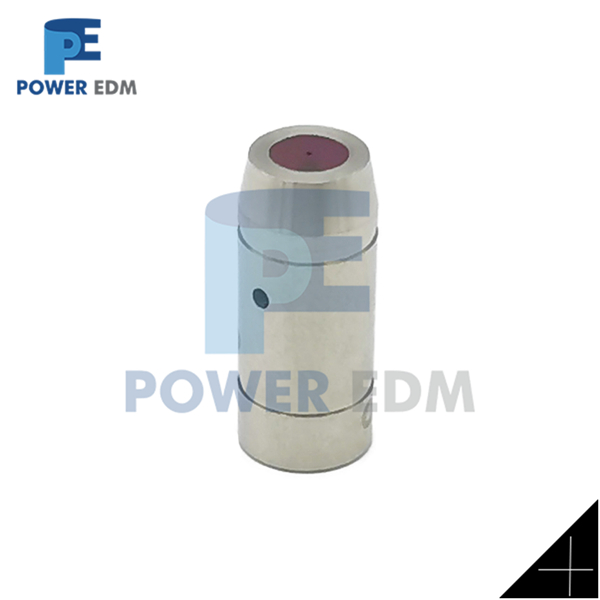

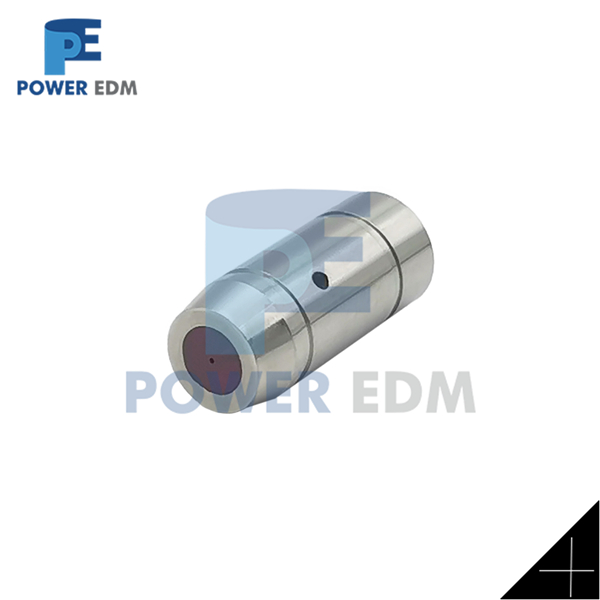

Sodick TS Guide |
|
|
New Type (Stainless case Ruby insert) |
|
|
Available ID=0.1mm-5.0mm |
|
|
Body OD=10.0mm |
|
|
Length L=23mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
Model NO. |
ID (mm) |
OEM NO.(5um) |
OEM NO.（20um） |
|
TSG-NEW-R-010 |
Φ0.10mm |
- |
- |
|
TSG-NEW-R-015 |
Φ0.15mm |
- |
- |
|
TSG-NEW-R-020 |
Φ0.20mm |
3563746 |
3562243 |
|
TSG-NEW-R-025 |
Φ0.25mm |
3564451 |
3561845 |
|
TSG-NEW-R-030 |
Φ0.30mm |
3562590 |
3562016 |
|
TSG-NEW-R-040 |
Φ0.40mm |
3562589 |
3562017 |
|
TSG-NEW-R-050 |
Φ0.50mm |
3563485 |
3562018 |
|
TSG-NEW-R-060 |
Φ0.60mm |
3561061 |
3562019 |
|
TSG-NEW-R-070 |
Φ0.70mm |
3561062 |
3562020 |
|
TSG-NEW-R-080 |
Φ0.80mm |
3561063 |
3562021 |
|
TSG-NEW-R-090 |
Φ0.90mm |
3561064 |
3562022 |
|
TSG-NEW-R-100 |
Φ1.00mm |
3561065 |
3562023 |
|
TSG-NEW-R-110 |
Φ1.10mm |
3561066 |
3562024 |
|
TSG-NEW-R-120 |
Φ1.20mm |
3561067 |
3562025 |
|
TSG-NEW-R-130 |
Φ1.30mm |
3561068 |
3562026 |
|
TSG-NEW-R-140 |
Φ1.40mm |
3561069 |
3562027 |
|
TSG-NEW-R-150 |
Φ1.50mm |
3561070 |
3562028 |
|
TSG-NEW-R-160 |
Φ1.60mm |
3561071 |
3562029 |
|
TSG-NEW-R-170 |
Φ1.70mm |
3561072 |
3562030 |
|
TSG-NEW-R-180 |
Φ1.80mm |
3561073 |
3562031 |
|
TSG-NEW-R-190 |
Φ1.90mm |
3561074 |
3562032 |
|
TSG-NEW-R-200 |
Φ2.00mm |
3561075 |
3562033 |
|
TSG-NEW-R-210 |
Φ2.10mm |
3561076 |
3562034 |
|
TSG-NEW-R-220 |
Φ2.20mm |
3561077 |
3562035 |
|
TSG-NEW-R-230 |
Φ2.30mm |
3561078 |
3562036 |
|
TSG-NEW-R-240 |
Φ2.40mm |
3561079 |
3562037 |
|
TSG-NEW-R-250 |
Φ2.50mm |
3561080 |
3562038 |
|
TSG-NEW-R-260 |
Φ2.60mm |
3561081 |
3562039 |
|
TSG-NEW-R-270 |
Φ2.70mm |
3561082 |
3562040 |
|
TSG-NEW-R-280 |
Φ2.80mm |
3561083 |
3562041 |
|
TSG-NEW-R-290 |
Φ2.90mm |
3561084 |
3562042 |
|
TSG-NEW-R-300 |
Φ3.00mm |
3561085 |
3562043 |
|
|
|
|
|
