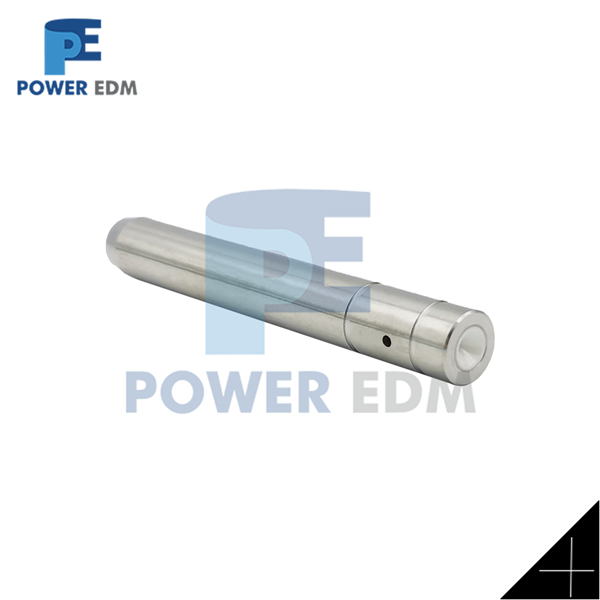

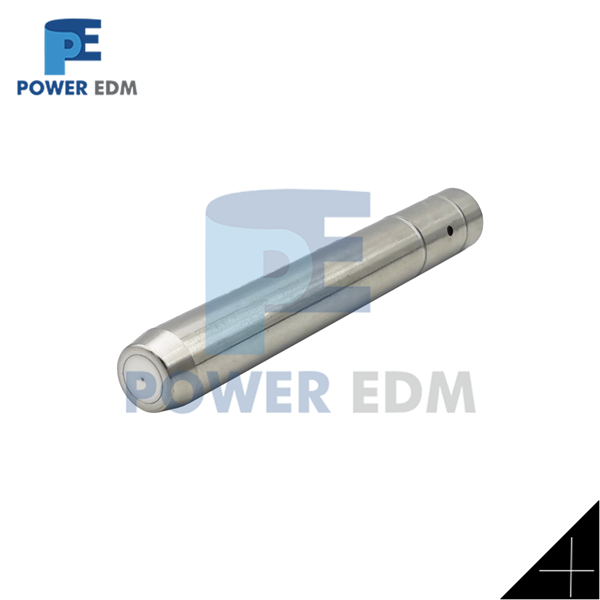

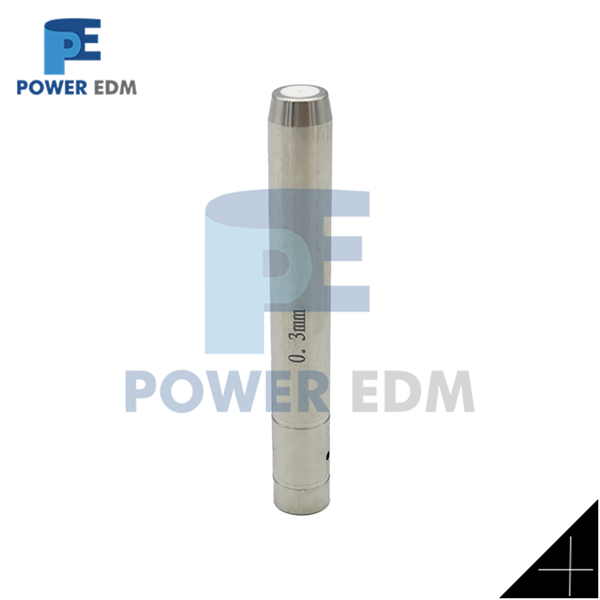

TSG-NEW-D10-EX50 Type NEW Extension 50mmL TS Guide for Sodick Small Hole Drilling Mechine

  • Ref No.: TSG-NEW-D10-EX50-030
  • OEM No.: -
  • Size: OD=10mm,ID=0.30mm,L=73mm
  • Product description: TSG-NEW-D10-EX50 Type NEW Extension 50mmL TS Guide for Sodick Small Hole Drilling Mechine,EDM Consumables,Power EDM
  • INQUIRY   EMAIL
Product Description:

Sodick TS Guide

T New Type Extension

Available ID=0.3mm-3.00mm

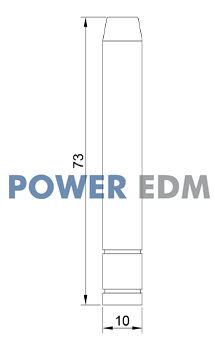

Extension OD=10mm/+50mmL

Body OD=10.0mm

Extension Length L=50.0mm

Tatal Length L=73mm



Model

ID (mm)

Extension L(mm

TSG-NEW-D10-EX50-030

Φ0.30mm

50mm

TSG-NEW-D10-EX50-040

Φ0.40mm

50mm

TSG-NEW-D10-EX50-050

Φ0.50mm

50mm

TSG-NEW-D10-EX50-060

Φ0.60mm

50mm

TSG-NEW-D10-EX50-070

Φ0.70mm

50mm

TSG-NEW-D10-EX50-080

Φ0.80mm

50mm

TSG-NEW-D10-EX50-090

Φ0.90mm

50mm

TSG-NEW-D10-EX50-100

Φ1.00mm

50mm

TSG-NEW-D10-EX50-110

Φ1.10mm

50mm

TSG-NEW-D10-EX50-120

Φ1.20mm

50mm

TSG-NEW-D10-EX50-130

Φ1.30mm

50mm

TSG-NEW-D10-EX50-140

Φ1.40mm

50mm

TSG-NEW-D10-EX50-150

Φ1.50mm

50mm

TSG-NEW-D10-EX50-160

Φ1.60mm

50mm

TSG-NEW-D10-EX50-170

Φ1.70mm

50mm

TSG-NEW-D10-EX50-180

Φ1.80mm

50mm

TSG-NEW-D10-EX50-190

Φ1.90mm

50mm

TSG-NEW-D10-EX50-200

Φ2.00mm

50mm

TSG-NEW-D10-EX50-210

Φ2.10mm

50mm

TSG-NEW-D10-EX50-220

Φ2.20mm

50mm

TSG-NEW-D10-EX50-230

Φ2.30mm

50mm

TSG-NEW-D10-EX50-240

Φ2.40mm

50mm

TSG-NEW-D10-EX50-250

Φ2.50mm

50mm

TSG-NEW-D10-EX50-260

Φ2.60mm

50mm

TSG-NEW-D10-EX50-270

Φ2.70mm

50mm

TSG-NEW-D10-EX50-280

Φ2.80mm

50mm

TSG-NEW-D10-EX50-290

Φ2.90mm

50mm

TSG-NEW-D10-EX50-300

Φ3.00mm

50mm

Notes:

Available Extended sizesEX20,EX40,EX60,EX80,EX100

Please contact with our Sales if you have speical sizes.
