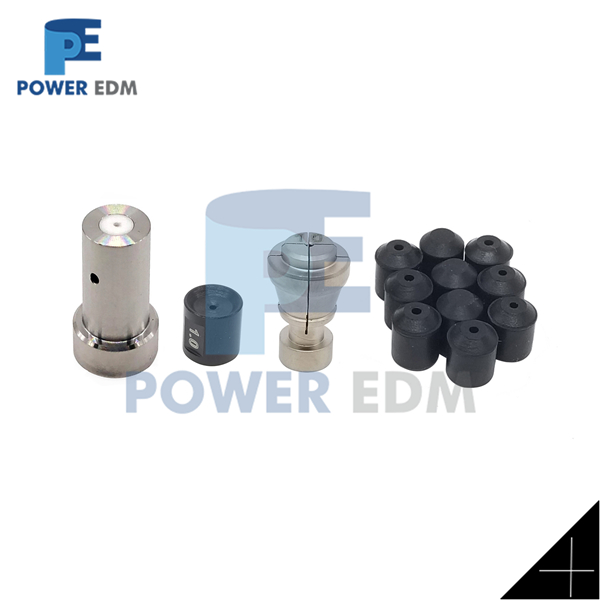

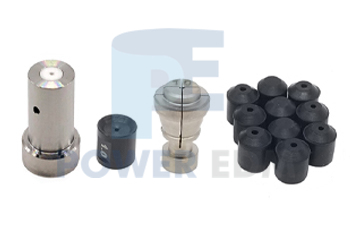

Sodick TS Guide |
|
|
T Type SET |
|
|
Available ID=0.1mm-3.10mm |
|
|
Body OD=13.0mm |
|
|
Shaft OD=10.0mm |
|
|
Length L=23mm |
|
|
|
|
|
|
|
|
|
|
Model NO. |
ID (mm) |
Shaft OD(mm） |
|
TS-SET-T-010 |
Φ0.10mm |
Φ10.0mm |
|
TS-SET-T-015 |
Φ0.15mm |
Φ10.0mm |
|
TS-SET-T-020 |
Φ0.20mm |
Φ10.0mm |
|
TS-SET-T-025 |
Φ0.25mm |
Φ10.0mm |
|
TS-SET-T-030 |
Φ0.30mm |
Φ10.0mm |
|
TS-SET-T-040 |
Φ0.40mm |
Φ10.0mm |
|
TS-SET-T-050 |
Φ0.50mm |
Φ10.0mm |
|
TS-SET-T-060 |
Φ0.60mm |
Φ10.0mm |
|
TS-SET-T-070 |
Φ0.70mm |
Φ10.0mm |
|
TS-SET-T-080 |
Φ0.80mm |
Φ10.0mm |
|
TS-SET-T-090 |
Φ0.90mm |
Φ10.0mm |
|
TS-SET-T-100 |
Φ1.00mm |
Φ10.0mm |
|
TS-SET-T-110 |
Φ1.10mm |
Φ10.0mm |
|
TS-SET-T-120 |
Φ1.20mm |
Φ10.0mm |
|
TS-SET-T-130 |
Φ1.30mm |
Φ10.0mm |
|
TS-SET-T-140 |
Φ1.40mm |
Φ10.0mm |
|
TS-SET-T-150 |
Φ1.50mm |
Φ10.0mm |
|
TS-SET-T-160 |
Φ1.60mm |
Φ10.0mm |
|
TS-SET-T-170 |
Φ1.70mm |
Φ10.0mm |
|
TS-SET-T-180 |
Φ1.80mm |
Φ10.0mm |
|
TS-SET-T-190 |
Φ1.90mm |
Φ10.0mm |
|
TS-SET-T-200 |
Φ2.00mm |
Φ10.0mm |
|
TS-SET-T-210 |
Φ2.10mm |
Φ10.0mm |
|
TS-SET-T-220 |
Φ2.20mm |
Φ10.0mm |
|
TS-SET-T-230 |
Φ2.30mm |
Φ10.0mm |
|
TS-SET-T-240 |
Φ2.40mm |
Φ10.0mm |
|
TS-SET-T-250 |
Φ2.50mm |
Φ10.0mm |
|
TS-SET-T-260 |
Φ2.60mm |
Φ10.0mm |
|
TS-SET-T-270 |
Φ2.70mm |
Φ10.0mm |
|
TS-SET-T-280 |
Φ2.80mm |
Φ10.0mm |
|
TS-SET-T-290 |
Φ2.90mm |
Φ10.0mm |
|
TS-SET-T-300 |
Φ3.00mm |
Φ10.0mm |
|
TS-SET-T-310 |
Φ3.10mm |
Φ10.0mm |
