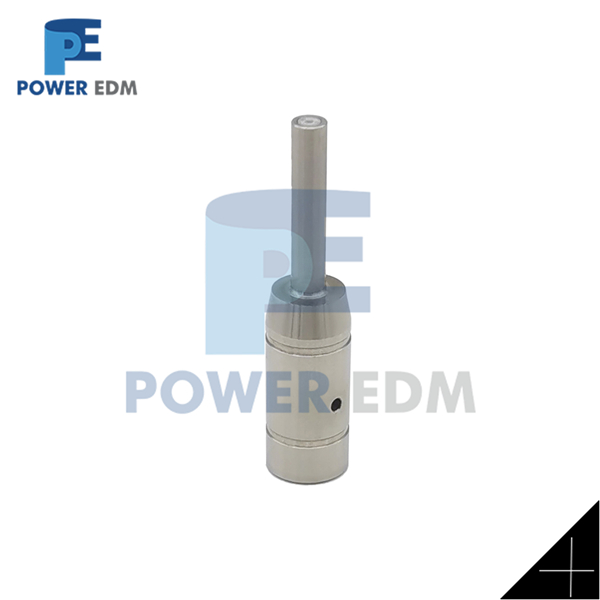

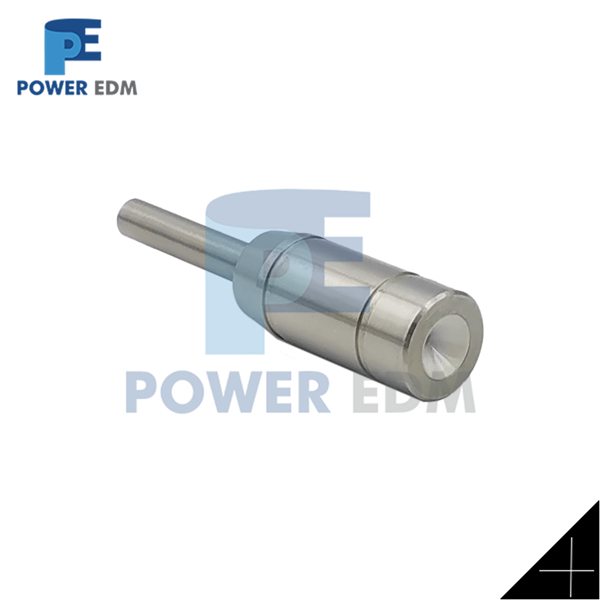

Sodick TS Guide |
|
|
T New Type Extension |
|
|
Available ID=0.3mm-3.00mm |
|
|

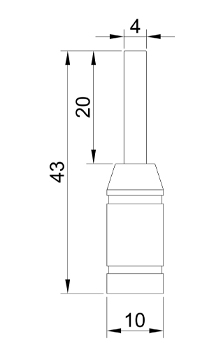

Extension OD=4mm/+20mmL |
|
|
Body OD=10.0mm |
|
|
Shaft OD=5.5mm |
|
|
Extension Length L=20.0mm |
|
|
Tatal Length L=43mm |
|
|
|
|
Model NO. |
ID (mm) |
Shaft OD(mm） |
Extension L(mm） |
|
TSG-NEW-D4-EX20-030 |
Φ0.30mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-040 |
Φ0.40mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-050 |
Φ0.50mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-060 |
Φ0.60mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-070 |
Φ0.70mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-080 |
Φ0.80mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-090 |
Φ0.90mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-100 |
Φ1.00mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-110 |
Φ1.10mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-120 |
Φ1.20mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-130 |
Φ1.30mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-140 |
Φ1.40mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-150 |
Φ1.50mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-160 |
Φ1.60mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-170 |
Φ1.70mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-180 |
Φ1.80mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-190 |
Φ1.90mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-200 |
Φ2.00mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-210 |
Φ2.10mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-220 |
Φ2.20mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-230 |
Φ2.30mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-240 |
Φ2.40mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-250 |
Φ2.50mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-260 |
Φ2.60mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-270 |
Φ2.70mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-280 |
Φ2.80mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-290 |
Φ2.90mm |
Φ4.0mm |
20.0mm |
|
TSG-NEW-D4-EX20-300 |
Φ3.00mm |
Φ4.0mm |
20.0mm |
|
|
|
|
|
|
Notes: |
Available Extended sizes：EX20,EX40,EX60,EX80,EX100 Please contact with our Sales if you have speical sizes. |
||
