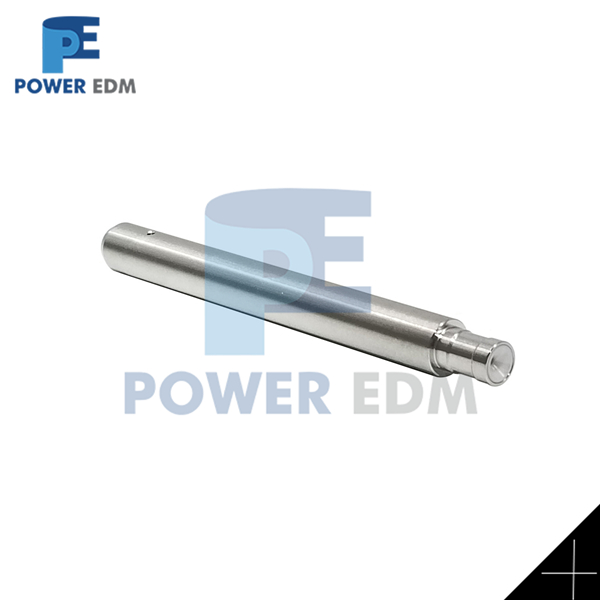

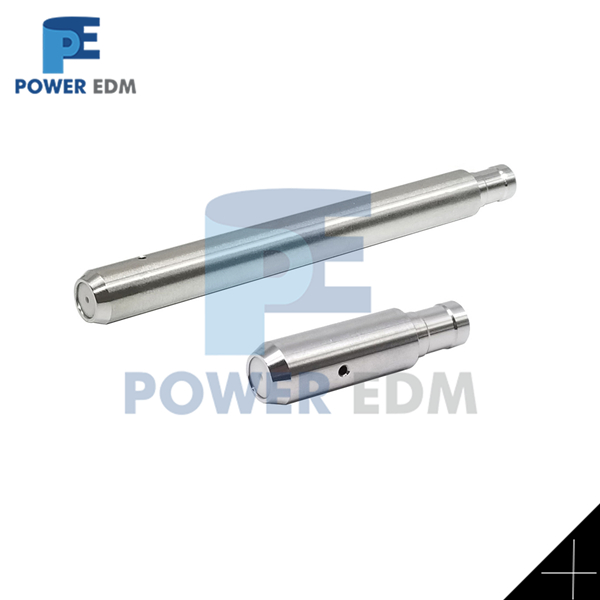

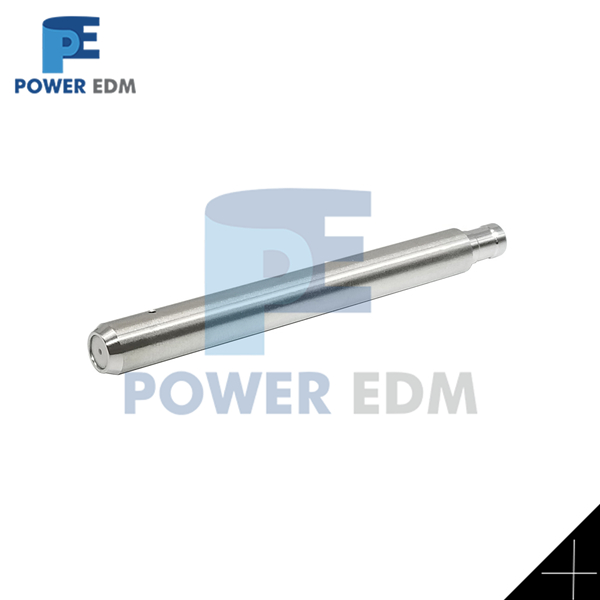

Ceramic Pipe Guide |
|
|
B Type Extension 50mm |
|
|

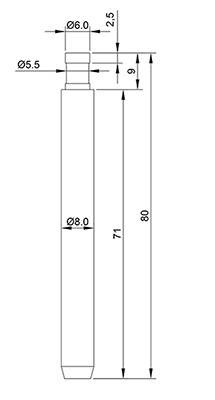

Available ID=0.3mm-3.0mm |
|
|
Body OD=8.0mm |
|
|
Shaft OD=5.5mm |
|
|
Extension Length L=50mm |
|
|
Total L=80mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
Model NO. |
ID (mm) |
Extension L |
|
Z140B-EX50-030 |
Φ0.30mm |
50mm |
|
Z140B-EX50-040 |
Φ0.40mm |
50mm |
|
Z140B-EX50-050 |
Φ0.50mm |
50mm |
|
Z140B-EX50-060 |
Φ0.60mm |
50mm |
|
Z140B-EX50-070 |
Φ0.70mm |
50mm |
|
Z140B-EX50-080 |
Φ0.80mm |
50mm |
|
Z140B-EX50-090 |
Φ0.90mm |
50mm |
|
Z140B-EX50-100 |
Φ1.00mm |
50mm |
|
Z140B-EX50-110 |
Φ1.10mm |
50mm |
|
Z140B-EX50-120 |
Φ1.20mm |
50mm |
|
Z140B-EX50-130 |
Φ1.30mm |
50mm |
|
Z140B-EX50-140 |
Φ1.40mm |
50mm |
|
Z140B-EX50-150 |
Φ1.50mm |
50mm |
|
Z140B-EX50-160 |
Φ1.60mm |
50mm |
|
Z140B-EX50-170 |
Φ1.70mm |
50mm |
|
Z140B-EX50-180 |
Φ1.80mm |
50mm |
|
Z140B-EX50-190 |
Φ1.90mm |
50mm |
|
Z140B-EX50-200 |
Φ2.00mm |
50mm |
|
Z140B-EX50-210 |
Φ2.10mm |
50mm |
|
Z140B-EX50-220 |
Φ2.20mm |
50mm |
|
Z140B-EX50-230 |
Φ2.30mm |
50mm |
|
Z140B-EX50-240 |
Φ2.40mm |
50mm |
|
Z140B-EX50-250 |
Φ2.50mm |
50mm |
|
Z140B-EX50-260 |
Φ2.60mm |
50mm |
|
Z140B-EX50-270 |
Φ2.70mm |
50mm |
|
Z140B-EX50-280 |
Φ2.80mm |
50mm |
|
Z140B-EX50-290 |
Φ2.90mm |
50mm |
|
Z140B-EX50-300 |
Φ3.00mm |
50mm |
