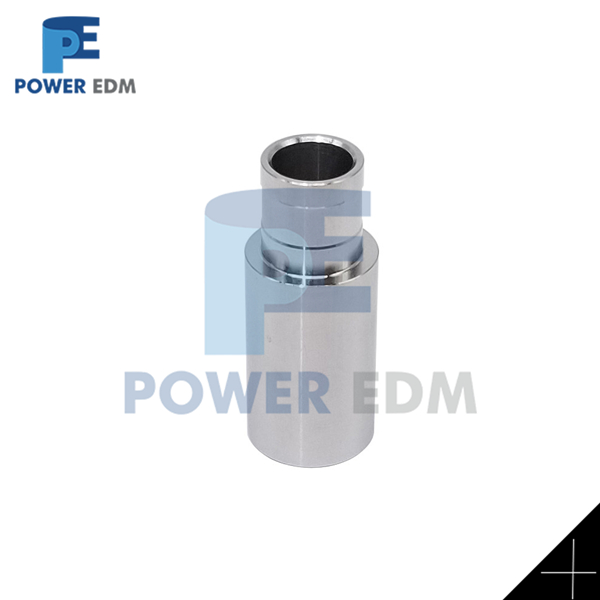

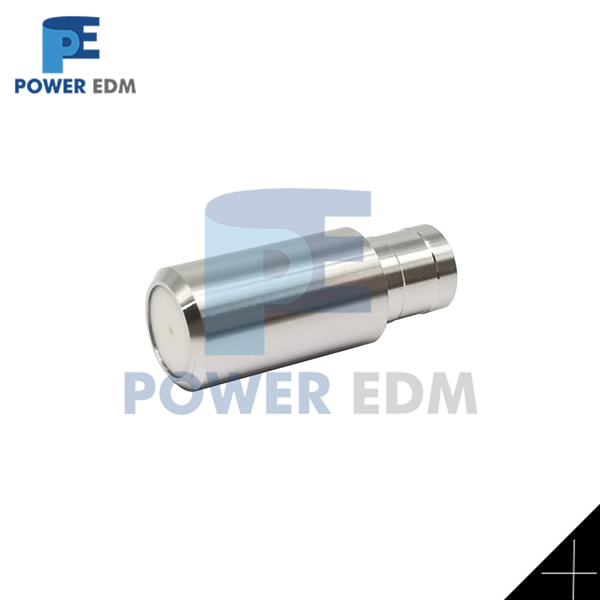

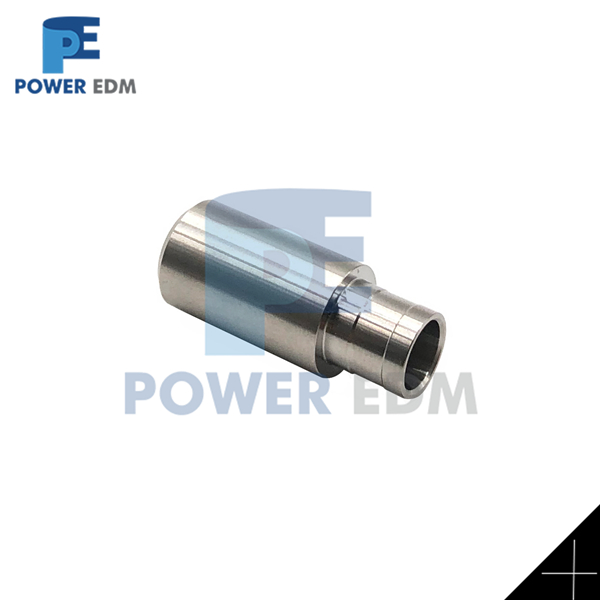

Ceramic Pipe Guide |
|
|
C Type |
|
|
Available ID=1.0mm-6.0mm |
|
|
Body OD=12.0mm |
|
|
Length L=30.3mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
Model NO. |
ID (mm) |
Shaft OD(mm） |
|
Z140C-100 |
Φ1.00mm |
Φ8.5mm |
|
Z140C-150 |
Φ1.50mm |
Φ8.5mm |
|
Z140C-180 |
Φ1.80mm |
Φ8.5mm |
|
Z140C-200 |
Φ2.00mm |
Φ8.5mm |
|
Z140C-300 |
Φ3.00mm |
Φ8.5mm |
|
Z140C-310 |
Φ3.10mm |
Φ8.5mm |
|
Z140C-320 |
Φ3.20mm |
Φ8.5mm |
|
Z140C-330 |
Φ3.30mm |
Φ8.5mm |
|
Z140C-340 |
Φ3.40mm |
Φ8.5mm |
|
Z140C-350 |
Φ3.50mm |
Φ8.5mm |
|
Z140C-360 |
Φ3.60mm |
Φ8.5mm |
|
Z140C-370 |
Φ3.70mm |
Φ8.5mm |
|
Z140C-380 |
Φ3.80mm |
Φ8.5mm |
|
Z140C-390 |
Φ3.90mm |
Φ8.5mm |
|
Z140C-400 |
Φ4.00mm |
Φ8.5mm |
|
Z140C-410 |
Φ4.10mm |
Φ8.5mm |
|
Z140C-420 |
Φ4.20mm |
Φ8.5mm |
|
Z140C-430 |
Φ4.30mm |
Φ8.5mm |
|
Z140C-440 |
Φ4.40mm |
Φ8.5mm |
|
Z140C-450 |
Φ4.50mm |
Φ8.5mm |
|
Z140C-460 |
Φ4.60mm |
Φ8.5mm |
|
Z140C-470 |
Φ4.70mm |
Φ8.5mm |
|
Z140C-480 |
Φ4.80mm |
Φ8.5mm |
|
Z140C-490 |
Φ4.90mm |
Φ8.5mm |
|
Z140C-500 |
Φ5.00mm |
Φ8.5mm |
|
Z140C-510 |
Φ5.10mm |
Φ8.5mm |
|
Z140C-520 |
Φ5.20mm |
Φ8.5mm |
|
Z140C-530 |
Φ5.30mm |
Φ8.5mm |
|
Z140C-540 |
Φ5.40mm |
Φ8.5mm |
|
Z140C-550 |
Φ5.50mm |
Φ8.5mm |
|
Z140C-560 |
Φ5.60mm |
Φ8.5mm |
|
Z140C-570 |
Φ5.70mm |
Φ8.5mm |
|
Z140C-580 |
Φ5.80mm |
Φ8.5mm |
|
Z140C-590 |
Φ5.90mm |
Φ8.5mm |
|
Z140C-600 |
Φ6.00mm |
Φ8.5mm |
