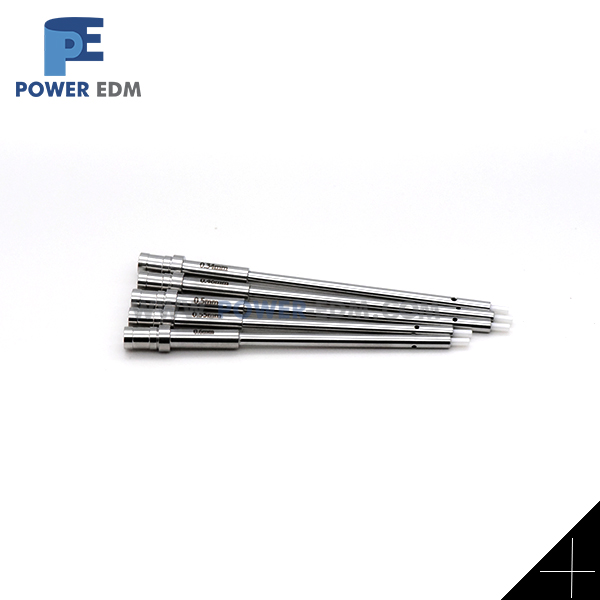

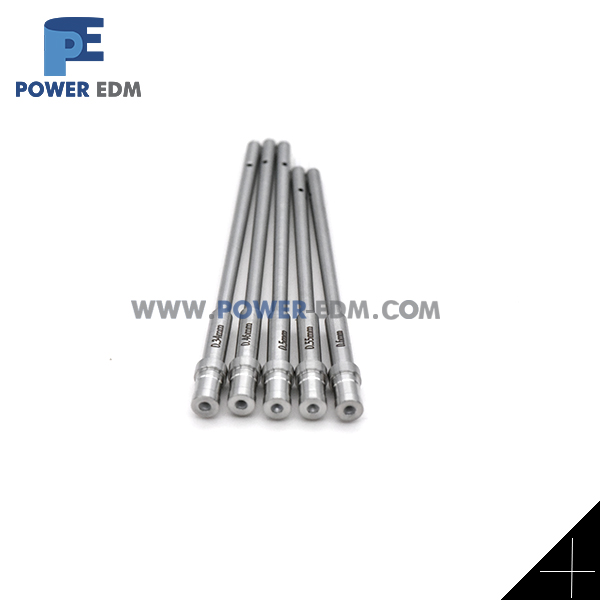

Drilling Ceramic Pipe Guide |
|
|
For Aero-engine components |
|
|
Z140L Type Extension L60mm D3.5mm |
|
|
Available ID=0.1mm-1.20mm |
|
|

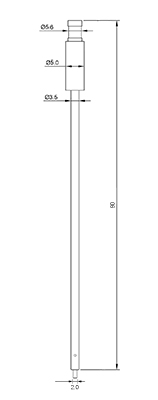

Body 1 OD=5.0mm |
|
|
Body 2 OD=3.5mm |
|
|
Body Ceramic OD=2.0mm |
|
|
Shaft OD=5.6mm |
|
|
Extension Length L=60mm |
|
|
Total L=90mm |
|
|
|
|
|
|
|
|
|
|
Model NO. |
ID (mm) |
Total L |
|
|
Z140L90-D3.5-C2-010 |
Φ0.10mm |
90mm |
|
|
Z140L90-D3.5-C2-015 |
Φ0.15mm |
90mm |
|
|
Z140L90-D3.5-C2-020 |
Φ0.20mm |
90mm |
|
|
Z140L90-D3.5-C2-025 |
Φ0.25mm |
90mm |
|
|
Z140L90-D3.5-C2-030 |
Φ0.30mm |
90mm |
|
|
Z140L90-D3.5-C2-035 |
Φ0.35mm |
90mm |
|
|
Z140L90-D3.5-C2-040 |
Φ0.40mm |
90mm |
|
|
Z140L90-D3.5-C2-045 |
Φ0.45mm |
90mm |
|
|
Z140L90-D3.5-C2-050 |
Φ0.50mm |
90mm |
|
|
Z140L90-D3.5-C2-055 |
Φ0.55mm |
90mm |
|
|
Z140L90-D3.5-C2-060 |
Φ0.60mm |
90mm |
|
|
Z140L90-D3.5-C2-065 |
Φ0.65mm |
90mm |
|
|
Z140L90-D3.5-C2-070 |
Φ0.70mm |
90mm |
|
|
Z140L90-D3.5-C2-075 |
Φ0.75mm |
90mm |
|
|
Z140L90-D3.5-C2-080 |
Φ0.80mm |
90mm |
|
|
Z140L90-D3.5-C2-085 |
Φ0.85mm |
90mm |
|
|
Z140L90-D3.5-C2-090 |
Φ0.90mm |
90mm |
|
|
Z140L90-D3.5-C2-095 |
Φ0.95mm |
90mm |
|
|
Z140L90-D3.5-C2-100 |
Φ1.00mm |
90mm |
|
|
Z140L90-D3.5-C2-105 |
Φ1.05mm |
90mm |
|
|
Z140L90-D3.5-C2-110 |
Φ1.10mm |
90mm |
|
|
Z140L90-D3.5-C2-115 |
Φ1.15mm |
90mm |
|
|
Z140L90-D3.5-C2-120 |
Φ1.20mm |
90mm |
|
|
Notes: |
Available Extended sizes：Special sizes can be customized according to customer needs. Please contact with our Sales if you have speical sizes. |
||
